Astro on AWS with SST

Create and deploy an Astro site to AWS with SST.

There are two ways to deploy an Astro site to AWS with SST.

Serverless
Containers

We’ll use both to build a couple of simple apps below.

Examples

We also have a few other Astro examples that you can refer to.

Enabling streaming in your Astro app

Serverless

We are going to create an Astro site, add an S3 Bucket for file uploads, and deploy it using the Astro component.

Before you get started, make sure to configure your AWS credentials.

1. Create a project

Let’s start by creating our project.

npm create astro@latest aws-astro
cd aws-astro

We are picking all the default options.

Init SST

Now let’s initialize SST in our app.

npx sst@latest init
npm install

Select the defaults and pick AWS. This’ll create a sst.config.ts file in your project root.

It’ll also ask you to update your astro.config.mjs with something like this.

 import aws from "astro-sst";

export default defineConfig({
  output: "server",
  adapter: aws()
});

Start dev mode

Run the following to start dev mode. This’ll start SST and your Astro site.

npx sst dev

Once complete, click on MyWeb in the sidebar and open your Astro site in your browser.

2. Add an S3 Bucket

Let’s allow public access to our S3 Bucket for file uploads. Update your sst.config.ts.

const bucket = new sst.aws.Bucket("MyBucket", {
  access: "public"
});

Add this above the Astro component.

Link the bucket

Now, link the bucket to our Astro site.

new sst.aws.Astro("MyWeb", {
  link: [bucket],
});

3. Create an upload form

Add the upload form client in src/pages/index.astro. Replace the <Layout /> component with:

<Layout title="Astro x SST">
  <main>
    <form action={url}>
      <input name="file" type="file" accept="image/png, image/jpeg" />
      <button type="submit">Upload</button>
    </form>
    <script>
      const form = document.querySelector("form");
      form!.addEventListener("submit", async (e) => {
        e.preventDefault();

        const file = form!.file.files?.[0]!;

        const image = await fetch(form!.action, {
          body: file,
          method: "PUT",
          headers: {
            "Content-Type": file.type,
            "Content-Disposition": `attachment; filename="${file.name}"`,
          },
        });

        window.location.href = image.url.split("?")[0] || "/";
      });
    </script>
  </main>
</Layout>

Add some styles, replace the <style /> tag with:

<style>
  main {
    margin: auto;
    padding: 1.5rem;
    max-width: 60ch;
  }
  form {
    color: white;
    padding: 2rem;
    display: flex;
    align-items: center;
    justify-content: space-between;
    background-color: #23262d;
    background-image: none;
    background-size: 400%;
    border-radius: 0.6rem;
    background-position: 100%;
    box-shadow: 0 4px 6px -1px rgba(0, 0, 0, 0.1), 0 2px 4px -2px rgba(0, 0, 0, 0.1);
  }
  button {
    appearance: none;
    border: 0;
    font-weight: 500;
    border-radius: 5px;
    font-size: 0.875rem;
    padding: 0.5rem 0.75rem;
    background-color: white;
    border: 1px solid rgb(var(--accent));
    color: rgb(var(--accent));
  }
  button:active:enabled {
    background-color: #EEE;
  }
</style>

4. Generate a pre-signed URL

When our app loads, we’ll generate a pre-signed URL for the file upload and use it in the form.

---
import { Resource } from "sst";
import Layout from '../layouts/Layout.astro';
import { getSignedUrl } from "@aws-sdk/s3-request-presigner";
import { S3Client, PutObjectCommand } from "@aws-sdk/client-s3";

const command = new PutObjectCommand({
  Key: crypto.randomUUID(),
  Bucket: Resource.MyBucket.name,
});
const url = await getSignedUrl(new S3Client({}), command);
---

And install the npm packages.

npm install @aws-sdk/client-s3 @aws-sdk/s3-request-presigner

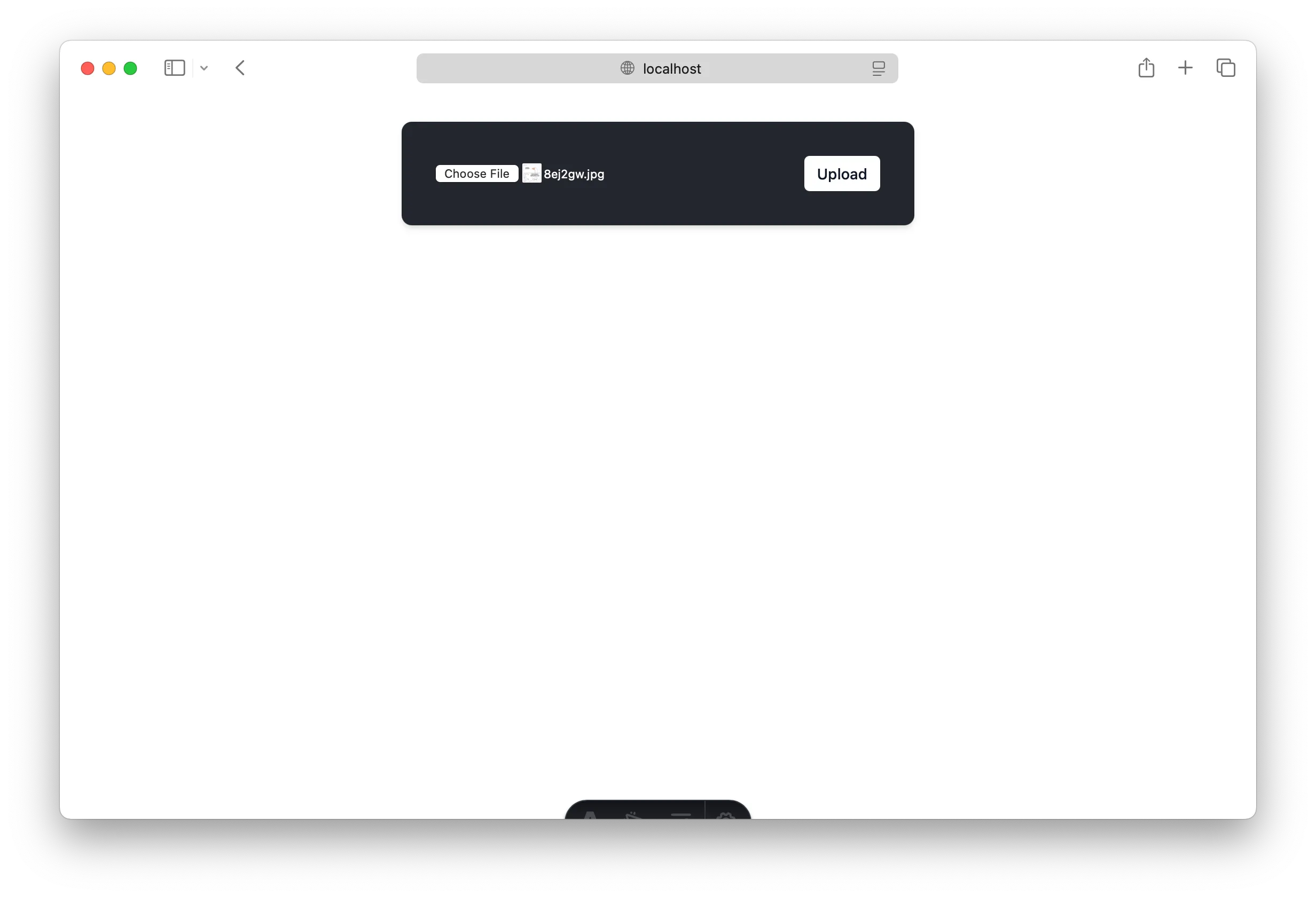

Head over to the local Astro site in your browser, http://localhost:4321 and try uploading an image. You should see it upload and then download the image.

5. Deploy your app

Now let’s deploy your app to AWS.

npx sst deploy --stage production

You can use any stage name here but it’s good to create a new stage for production.

Containers

We are going to build a hit counter Astro site with Redis. We’ll deploy it to AWS in a container using the Cluster component.

Before you get started, make sure to configure your AWS credentials.

1. Create a project

Let’s start by creating our project.

npm create astro@latest aws-astro-container
cd aws-astro-container

We are picking all the default options.

Init SST

Now let’s initialize SST in our app.

npx sst@latest init
npm install

Select the defaults and pick AWS. This’ll create a sst.config.ts file in your project root.

It’ll also ask you to update your astro.config.mjs. But we’ll instead use the Node.js adapter since we’re deploying it through a container.

npx astro add node

2. Add a Cluster

To deploy our Astro site in a container, we’ll use AWS Fargate with Amazon ECS. Replace the run function in your sst.config.ts.

async run() {
  const vpc = new sst.aws.Vpc("MyVpc", { bastion: true });
  const cluster = new sst.aws.Cluster("MyCluster", { vpc });

  cluster.addService("MyService", {
    loadBalancer: {
      ports: [{ listen: "80/http", forward: "4321/http" }],
    },
    dev: {
      command: "npm run dev",
    },
  });
}

This creates a VPC with a bastion host, an ECS Cluster, and adds a Fargate service to it.

The dev.command tells SST to instead run our Astro site locally in dev mode.

3. Add Redis

Let’s add an Amazon ElastiCache Redis cluster. Add this below the Vpc component in your sst.config.ts.

const redis = new sst.aws.Redis("MyRedis", { vpc });

This shares the same VPC as our ECS cluster.

Link Redis

Now, link the Redis cluster to the container.

cluster.addService("MyService", {
  // ...
  link: [redis],
});

This will allow us to reference the Redis cluster in our Astro site.

Install a tunnel

Since our Redis cluster is in a VPC, we’ll need a tunnel to connect to it from our local machine.

sudo npx sst tunnel install

This needs sudo to create a network interface on your machine. You’ll only need to do this once on your machine.

Start dev mode

Start your app in dev mode.

npx sst dev

This will deploy your app, start a tunnel in the Tunnel tab, and run your Astro site locally in the MyServiceDev tab.

4. Connect to Redis

We want the / route to increment a counter in our Redis cluster. Let’s start by installing the npm package we’ll use.

npm install ioredis

We’ll increment the counter when index.astro loads.

import { Resource } from "sst";
import { Cluster } from "ioredis";

const redis = new Cluster(
  [{ host: Resource.MyRedis.host, port: Resource.MyRedis.port }],
  {
    dnsLookup: (address, callback) => callback(null, address),
    redisOptions: {
      tls: {},
      username: Resource.MyRedis.username,
      password: Resource.MyRedis.password,
    },
  }
);

const counter = await redis.incr("counter");

---

Let’s update our component to show the counter. Replace the <Layout /> component in src/pages/index.astro.

<Layout title="Welcome to Astro.">
  <main>
    <h1>Hit counter: {counter}</h1>
  </main>
</Layout>

Test your app

Let’s head over to http://localhost:4321 in your browser and it’ll show the current hit counter.

You should see it increment every time you refresh the page.

5. Deploy your app

To deploy our app we’ll add a Dockerfile.

View Dockerfile

# From https://docs.astro.build/en/recipes/docker/

FROM node:lts AS base
WORKDIR /app

# By copying only the package.json and package-lock.json here, we ensure that the following `-deps` steps are independent of the source code.
# Therefore, the `-deps` steps will be skipped if only the source code changes.
COPY package.json package-lock.json ./

FROM base AS prod-deps
RUN npm install --omit=dev

FROM base AS build-deps
RUN npm install

FROM build-deps AS build
COPY . .
RUN npm run build

FROM base AS runtime
COPY --from=prod-deps /app/node_modules ./node_modules
COPY --from=build /app/dist ./dist

ENV HOST=0.0.0.0
ENV PORT=4321
EXPOSE 4321
CMD node ./dist/server/entry.mjs

Let’s also add a .dockerignore file in the root.

.DS_Store
node_modules
dist

Now to build our Docker image and deploy we run:

npx sst deploy --stage production

You can use any stage name here but it’s good to create a new stage for production.

Congrats! Your app should now be live!

SST Astro container app

Connect the console

As a next step, you can setup the SST Console to git push to deploy your app and monitor it for any issues.

SST Console Autodeploy

You can create a free account and connect it to your AWS account.
